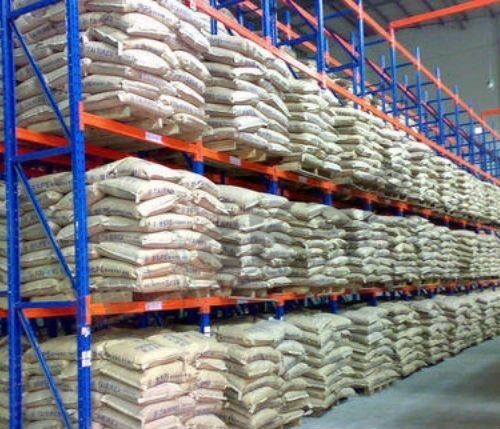

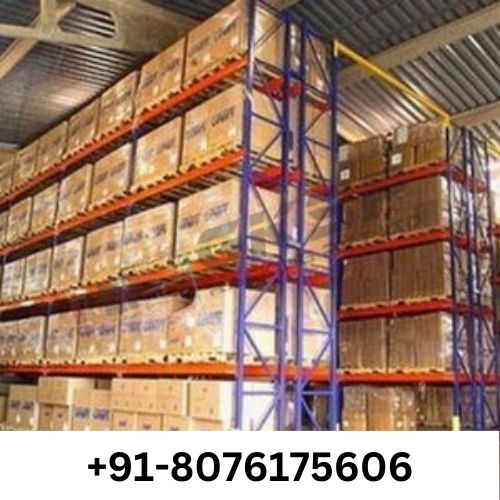

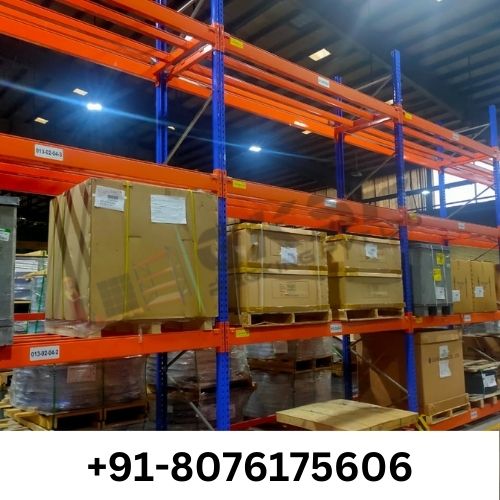

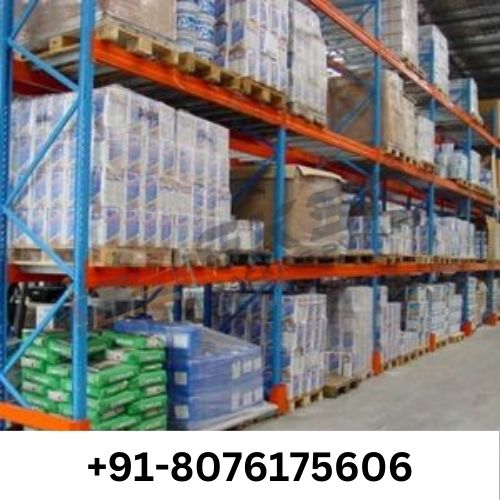

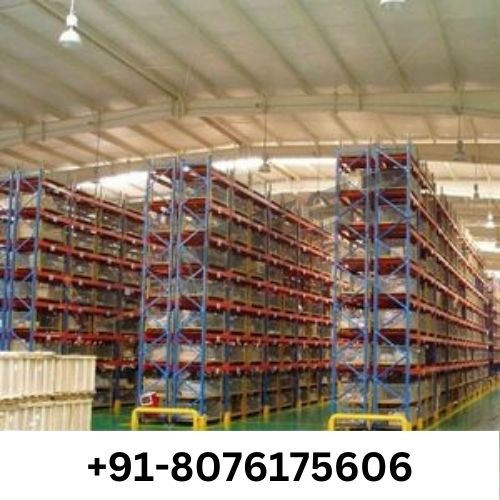

Heavy Duty Pallet Racks
Heavy duty pallet racks consist of one pallet with a maximum of two racks placed one after the other. It is the most economical and easiest storage solution with complete accessibility to each pallet. Hence, Heavy Duty Pallet Racks preferred by most warehouses, especially the ones that stock fast-moving SKUs (Stock Keeping Units). This racking option is cost-effective, adaptable and flexible to the warehouse requirements.
Furthermore, Heavy Duty Pallet Racks is compatible with almost every forklift, reach truck and material handling equipment. No wonder, why Heavy Duty Pallet Racks the most commonly used racking system these days. Maximum of two racks placed one after the other.
Heavy Duty Racks is all about adjusting the beam levels in the pallet racks to suit the need of the hour. In this kind of racking system, the beam clipped into frames, where the pallets support the beams.
It operates on the FIFO system where the first load placed retrieved first. Its direct access to all products makes it perfect for warehouses that have a quick turnover of inventory. The pallets rest on upright beams which are adjustable to varying heights, loads, and sizes, making it the obvious choice for the warehouses with standard and customized products.
List of items in a pallet rack
- Uprights
- Baseplates
- Deep-bars
- Crossbar
- Load-beams
- Panels
- Nuts & Bolts
Specifications:-
| Part | Gauge |
|---|---|
| Upright | 2mm, 2.5mm |
| Base-Plate | 3mm |
| Deep-Bar | 1.8mm, 2mm, 2.5mm |
| Cross-Bar | 1.8mm, 2mm, 2.5mm |
| Beam | 1.6mm, 1.8mm, 2mm, 2.5mm |
| Panels | 0.8mm, 0.9mm, 1mm, 1.25mm,1.6mm |

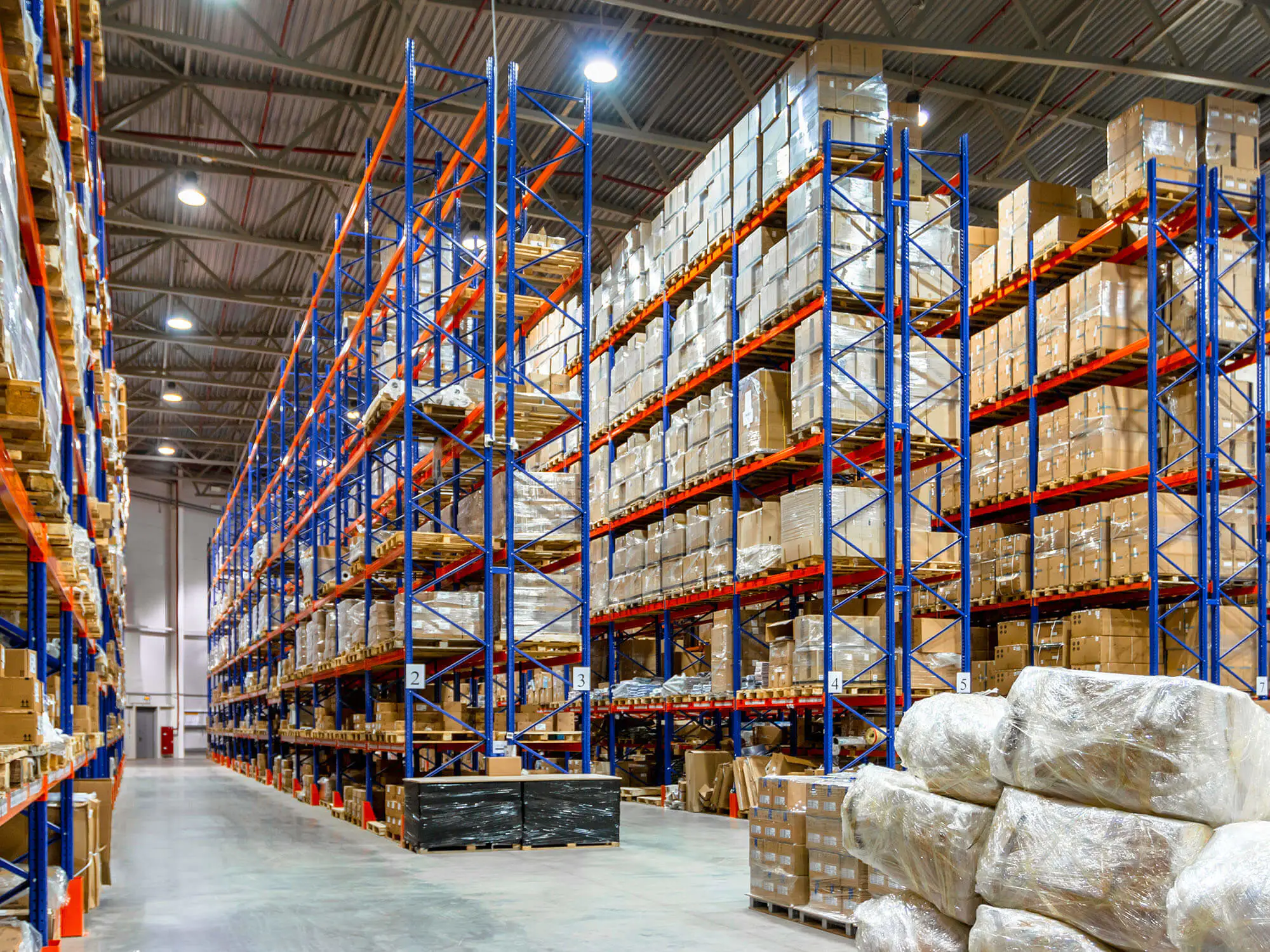

Selective pallet racking/Heavy Duty Pallet Racks is ideal for small warehouses with low-storage density because it is the least expensive. If you have a larger warehouse, it is better to select your choice based on:
- Storage density
- Warehouse capacity
- Picking profile
- Warehouse regulations
- Forklift access
How to select pallet racks?
Pallet racks vary for every manufacturer. The design makes the rack stand out but overall they work the same. The major problem lies while installing and uninstalling the rack. GKSP has made the best pallet rack design. So easy to install, an unprofessional labor could install .
Choosing the Right Heavy Duty Pallet Rack
When selecting a heavy duty pallet rack system, consider the following factors:
| Weight Capacity | UDL Beam Capacity = Load Weight + Weight of Panels |
| Dimensions | Adding 6 inches in length breadth and shelf height for load maneuverability. Beam Length ∝ 1/Beam Capacity. |
| Accessibility | Access from both sides, one side, FIFO racking and forklift operatable, Selecting between VNA, Double Deep Pallet Racks. |
Heavy Duty Pallet Racks: Thickness & Material
| Part | Gauge |
|---|---|
| Upright | 2mm, 2.5mm |
| Base-Plate | 3mm |
| Deep-Bar | 1.8mm, 2mm, 2.5mm |
| Cross-Bar | 1.8mm, 2mm, 2.5mm |
| Beam | 1.6mm, 1.8mm, 2mm, 2.5mm |
| Panels | 0.8mm, 0.9mm, 1mm, 1.25mm,1.6mm |
Best Pallet Rack and Racking Systems for Warehouse Storage in India
Choosing the best pallet rack can significantly improve your storage organisation, efficiency and reduce material handling time.
Why Choose the Right Racks for Warehouse Storage?
Using the appropriate racks for warehouse storage helps businesses maximize their storage capacity while maintaining accessibility and safety. A good racking system improves visibility of inventory, reduces product damage, and allows faster picking and replenishment. This is especially critical in high-volume warehouses where time and space are money.
Types of Racking System in Warehouse
Each of these systems serves specific operational goals, and the right choice depends on the nature of your business and inventory flow.
Pallet Racking System Dimensions
The pallet racking system dimensions vary depending on the type and load requirements. The size of the rack is given by the clients or our engineers do a site visit and determine the requirement of the client. Typically:
- Beam Lengths: 900mm to 3600mm
- Upright Heights: 2000mm to 9000mm or more
- Load Capacity: Ranges from 500 kg to over 3000 kg per level
Custom configurations are also available to accommodate special storage needs or limited floor space.
Pallet Racking in Warehouse Operations
Pallet racking in warehouse operations ensures that goods are stored in a systematic, easy-to-access manner. It plays a vital role in maintaining warehouse safety, cleanliness and compliance standards.
Best Pallet Rack in India
GKSP Racking Private Limited Manufacturer of the best pallet rack in India is one that is cost-effective, durable, and tailored to your operational requirements. GKSP Racking Private Limited pallet racking system manufacturers in India offer a range of customizable solutions with professional installation and support.
Material of pallet Racking
Pallet racking beams made of superior quality mild-steel that adheres to the ISI standardization. The Upright Frame consists of deep-bars, crossbars, baseplate, and the uprights(legs) itself. Depending on the type of beams chosen, these can have either one or two sections. The Finger plates are welded into these sections and then the beam is powder coated to keep corrosion far away.
Furthermore, it is compatible with every forklift, reach truck and material handling equipment. It is the most commonly used racking system these days.
Heavy Duty Racks is all about adjusting the beam levels in the racks to suit the need of the hour. In this kind of racking system, the beam clipped into frames, where the pallets support the beams.
Heavy Duty Pallet Racks operates on the FIFO system where the first load to be placed will be retrieved first. Its direct access to all products makes it perfect for warehouses that have a quick turnover of inventory. The pallets rest on upright beams which are adjustable to varying heights, loads, and sizes, making it the obvious choice for the warehouses with standard and customized products.
Recognized for their quality craftsmanship and innovative designs, GKSP RACKING PVT. LTD. offers a diverse range of Storage Racks(SLOTTED ANGLE RACKS, CANTILEVER RACK, MEZZANINE FLOORS, RACKS FOR SHOP).
Connect us through instagram & facebook. Click at the link to enquire about your requirement.
Features of the Selective Racking System:
- Available with a variety of accessories to ensure safety.
- Simple to install, adjust, and customize according to storage demand.
- Works on the FIFO system, making it ideal for perishable SKU.
- A wide range of uprights and beams allows optimal storage solutions.
- Recommended for wholesale stores, retail distribution centers, FMCG, electronics, etc.
- Accurate and safe picking without any delays.
Conclusions
There are no hard and fast rules about the kind of goods you can store in your pallet racking system. These racks are solid, sturdy, and strong and hence can be used to store anything from small-sized boxes to bulky goods. You are good to go as long as the cargo is properly packed, secured and does not exceed the structure’s load-bearing capacity!
To simplify inventory management and improve warehouse efficiency, contact us as we are a renowned selective racking supplier in the India. Shop with us now and get assured of the smartest storage solution.
Question about the products
Essentially, any “safe height” can be the maximum height of your pallet racking system. We say this because there are no hard and fast rules that determine how far you can build this racking system. Many variables like the following determine the height:
- Building infrastructure
- Size and reach of the forklifts
- System’s load capacity
- Weight of load units
- Height of the warehouse
- Type of sprinkler system
- Structure of the roof
- Floor loading capacity
If you stack the pallets too high, you will optimize your storage capacity, but your forklifts will not reach that far enough. Standard forklifts can reach a maximum height of 4 to 4.5 meters. Specialized forklifts can reach up to ten meters, but they are highly expensive. Another factor determining how far your pallet racking can go depends on the type of goods stored at your facility. High pallets are ideal for small stock. However, large and bulky cargo must be stored lower down for safety.
Here again, the load-bearing capacity of your pallet racking system depends on factors like:
- Size of racking frames
- Load beam options
- Vertical beam pitch
- Upright frame options
- Size of bay clear entry
- Actual beam depth
- Size of the beam face and racking frames
- Weight of the floor slab
- Flooring and anchoring options
Today, three different types of pallet racking frames are available- standard, heavy-duty, and medium. However, you can also ask your rack manufacturer to reinforce your pallet racking system with structural components to improve its stability.
